Web API for System Center Operations Manager

The SCOM web API is updated, see this post

You will always find the latest SCOM Web API release on GitHub



System Center Operations Manager (SCOM) is a widely used monitoring platform and one of its advatages is the ability to custom author monitoring through management pack development.
With a ‘cloud first’ approach most systems is able to do information exchange or integration through a web-based API, often reffered to as a REST API. SCOM have many ways to exchange information and the System Center Suite also have an integration platform call System Center Service Provide Foundation (SPF) which you can read more about here

To support a more light weight integration platform i decided to start my first C# project and develop a web-based API for SCOM that supported the daily used “functions”. Thanks to my colleague @RudiMartinsen i managed to create a working solution.

API Endpoints

  • [GET] Agents (Admin privileges required)
    • Get all agents
    • single based on Guid
  • [GET] Alerts
    • Gets all alerts
    • single based on Guid
    • Single based on ComputerName
      • Include ‘closed’ with IncClosed=true
  • [PUT] Alerts
    • Update a single alert with resolution state and/or ticket id
    • Monitor generated alerts will be resett if 255 (closed) is sent as resolution state
  • [GET] WindowComputers
    • Get all partial monitoring object from the Windows Computer class
    • Single based on ComputerName
  • [POST] ComputerMaintenance*
    • Maintenance mode a Windows Computer for a specific # minutes
  • [GET] MonintoringObject/{id}
    • Get a single monitoring object based on ID (Guid)

I have uploaded the source project on GitHub and hopefully our community can continue to develop and introduce new features missing in this release.



Installation

There are two versions of the API. One without user impersonation and one where this is available. To install the version with user impersonation enabled. Do the following on a SCOM Management server

  • Download the project or .zip file from GitHub
  • Copy the required .dll from your management server (\Operations Manager\Server\SDK Binaries) to the web api Bin folder
    • Microsoft.EnterpriseManagement.Core.dll
    • Microsoft.EnterpriseManagement.OperationsManager.dll
    • Microsoft.EnterpriseManagement.Runtime.dll

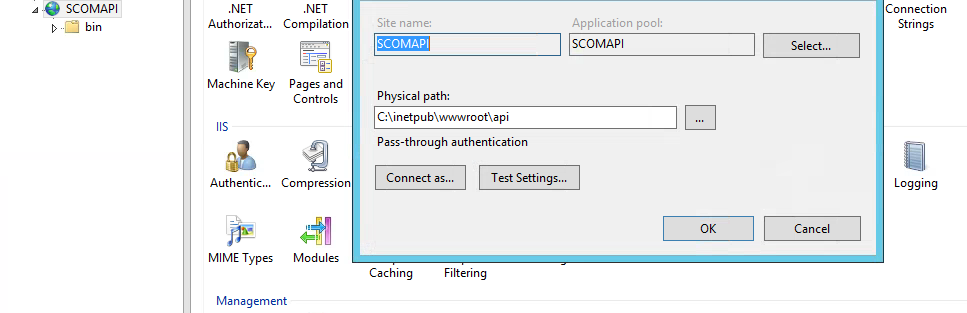

  • Create a new web site and set physical path to where you extracted the files

  • Enable windows authentication (and basic if you want)

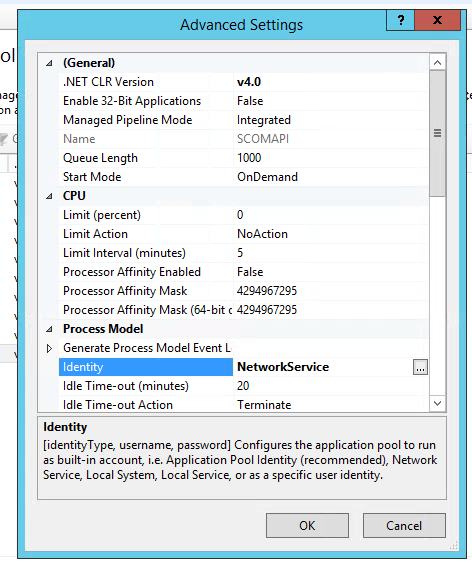

  • Set your Application pool to use network service identity



Examples

Using powershell here are a few examples on how you can use the API

Get Alerts
#Get all alerts
Invoke-RestMethod -Uri 'http://localhost:64049/Api/alerts' -UseDefaultCredentials

#Get a single alert
Invoke-RestMethod -Uri 'http://localhost:64049/Api/alerts?id=4a6f29e3-f4b5-4883-a3f2-97eb3be50c12' -UseDefaultCredentials

#Get alerts specified with computername
Invoke-RestMethod -Uri 'http://localhost:64049/Api/alerts?ComputerName=COMPUTERNAME.fqdn' -UseDefaultCredentials
Put a computer in to maintenance
PS C:\Users\...> $json = @"
{
    "DisplayName": "COMPUTERNAME.fqdn",
    "Minutes": 10,
    "comment": "I believe this is working"
}
"@

Invoke-RestMethod -Method POST -Uri 'http://localhost:64049/API/ComputerMaintenance' -Body $json -UseDefaultCredentials -ContentType 'Application/json'

Returns

DisplayName           Minutes EndTime                      comment
-----------           ------- -------                      -------
COMPUTER NAME.fqdn      10 2017-05-05T08:42:56.5938294Z I believe this is working
Get a monitoring object
#Get a monitoring object
Invoke-restmethod -uri 'http://localhost:64049/API/MonitoringObject/cb191c1a-47dc-3c51-3686-9f66dd59f187' -UseDefaultCredentials


displayName : D:
healthState : Success
inMaintenance : False
stateLastModified : 23.03.2017 15.39.23
classes :
path : MyComputerHostingThisDisk.fqdn



Limitations*

  • SCOM .dll files will need to copied manually in to the web api application folder as I assume im not allowed to redestribute these.
34 COMMENTS
  • nimabi
    Reply

    Thank you very much for sharing, I learned a lot from your article. Very cool. Thanks. nimabi

  • Balaji
    Reply

    Please provide the sample value for the

    Also when i browse http://localhost:64049/swagger/docs/v1 , i am getring the json , not swagger UI
    what am i missing

    1. Martin Ehrnst
      Reply

      did you figure this out? I havent worked with this for years, so i dont remember 🙁

  • gate io
    Reply

    I may need your help. I tried many ways but couldn’t solve it, but after reading your article, I think you have a way to help me. I’m looking forward for your reply. Thanks.

  • Create Account
    Reply

    The point of view of your article has taught me a lot, and I already know how to improve the paper on gate.oi, thank you. https://www.gate.io/ru/signup/XwNAU

  • gate io guvenilir mi
    Reply

    I am a website designer. Recently, I am designing a website template about gate.io. The boss’s requirements are very strange, which makes me very difficult. I have consulted many websites, and later I discovered your blog, which is the style I hope to need. thank you very much. Would you allow me to use your blog style as a reference? thank you!

  • Hung Le
    Reply

    how to put an microsoft.windows.cluster instead of put microsoft.windows.computer in maintenance?

  • Hung Le
    Reply

    How can i put a Microsoft.windows.cluster instead of Microsoft.windows.computer in Maintenance ?

    1. Martin Ehrnst
      Reply

      Great question. Have you tried using the object maintenance? I have not tried this my self, and not sure how it traverse on clusters

  • stefanivascu613
    Reply

    Hey,
    I was looking around to find a description of the fields under: /API/Agents. I get the json with the 20 values (0 to 19), I can figure out some of them (like hostname, management server, etc) but some of them are still a mystery. Could you shed some light on this, please 😀 ?

    p.s. Great work with this, you saved me a lot of trouble..

    1. Martin Ehrnst
      Reply

      Hi Stefan. I’m not in front of my computer,but from the top of my head it’s strictly raw data. The same you would get when using get-scomagent in powershell. Any particular fields you don’t know the meaning of?

      1. stefanivascu613
        Reply

        Hey, thanks for the reply.

        Here is what I get via the API:
        0 “216e1921-8ee7-b22c-8f1a-20a25482e00f”
        1 “servx1.domain.lcl”
        2 “domain.lcl”
        3 “servx1”
        4 “servx1.domain.lcl”
        5 “SYSTEM”
        6 “DC\\adminusr”
        7 “2018-02-20T17:48:16”
        8 true
        9 true
        10 false
        11 “7.1.10184.0”
        12 3
        13 false
        14 “62577b69-f6df-2fa8-3c64-3b78150e47fb”
        15 “118c0f18-7a70-5f57-3a9b-eeaf1705b3fc”
        16 “scomgw.domain.lcl”
        17 “06ac2d70-a350-65c7-460c-b9db271d7345”
        18 “37848e16-37a2-b81b-daaf-60a5a626be93”
        19 “2018-02-20T17:55:52.61”

        I presume the following:
        0 – host id
        1 – name
        2 – domain
        3 – computername
        4 – DisplayName
        5 – ActionAccountIdentity
        6 – InstalledBy
        7 – InstallTime
        11 – Version
        16 – PrimaryManagementServerName
        19 – looks like LastModified, but I am not sure

        I have no idea what the following represent: 8, 9, 10, 12, 13, 14, 15, 17, 18

        Thanks

        1. Martin Ehrnst
          Reply

          Hmmm… I will have to check it out my self. Maybe tomorrow. To be honest I have never used the endpoint my self. Only created it as I figured it would be useful at some point 😉

        2. Martin Ehrnst
          Reply

          Yeah. We need to create our own model for this… Here’s the output from Get-SCOMAgent powershell commandlet. If you feel confident to do so, please contribute to the code on GitHub
          Again, sorry for not quality check that endpoint at all.


          PatchList : System Center 2016 Operations Manager Update Rollup 3 Patch;
          PrimaryManagementServerName : ManagementServer
          ManagementGroup : ManagementGroup
          Id : 43d87c22-f3a5-788c-01af-fffb9e705453
          LastModified : 26.02.2018 10.41.31
          Name : ComputerName.domain.local
          DisplayName : ComputerName.domain.local
          HostComputer : ComputerName.domain.local
          HostedHealthService : ComputerName.domain.local
          HealthState : Success
          PrincipalName : ComputerName.domain.local
          NetworkName : ComputerName.domain.local
          ComputerName : ComputerName
          Domain : I04
          IPAddress : 10.1.1.11, fe80::1c4a:1cfa:c68c:21a4, 2a00:10b0:2:40:1c4a:1cfa
          :10b0:2:26::128
          Version : 8.0.10918.0
          RequestCompression : True
          CommunicationPort : 5723
          MaximumSizeOfAllTransferredFilesBytes : 0
          MaximumQueueSizeBytes : 104857600
          ManuallyInstalled : False
          InstallTime : 20.04.2017 10.33.12
          InstalledBy : domain\UserWhoInstalled
          CreateListener : False
          AuthenticationName :
          ActionAccountIdentity : SYSTEM
          HeartbeatInterval : 120
          ProxyingEnabled : True
          ManagementGroupId : 00000000-0000-0000-0000-000000000000

          1. stefanivascu613

            Hey,

            Thanks for looking into this. I’ll have a deeper look at this and if I can come up with something to enhance the code I will submit it via github.

            Thanks.

  • Harish
    Reply

    Hi Martin

    We are trying to automate the SCOM alters by writing the script to resolve the alerts and closing them. But the thing is when i fetch the alerts from the SCOM, data is huge and it will take more time. Is there a way to restrict the no of alerts to fetch in API. Please help me it would be helpful.

    1. Martin Ehrnst
      Reply

      Hi Harish. I haven’t implemented any function to limit the # returned. I may look in to that. Just by curiosity, how many alerts are we talking, and how long does it take?

      1. Harish
        Reply

        Max 200 alerts at one poll.We are scheduling this script at half an hour interval to fetch and create a ITSM ticket for end to end integration.

  • Hung Le
    Reply

    SCOM 2016 UR3 on WIndows 2012 R2

    1. Hung Le
      Reply

      Webdav is enable. Have you ever tested with SCOM 2016 on Windows 2012 R SErver and IIS 8.5?

      1. Martin Ehrnst
        Reply

        That might be your problem. check the link if it makes sense. No sorry, only 2012 R2 os and scom and 2016 scom/os, but your combination should work, as it is the put command that seems to be the issue

        1. Hung Le
          Reply

          Finally it works.
          After make some configuration change in IIS and use -Credential instead -UseDefaultCredentials.

          Thanks you
          Hung

          1. Martin Ehrnst

            Perfect. Glad you sorted it out

  • Hung Le
    Reply

    Put server in Mainteance works but put/update an Alert doesn’t work. Do you have an example for updating an alert?

    1. Martin Ehrnst
      Reply

      Hi Hung Le,

      What languange are you calling the API with, is it working through swagger?
      Using PowerShell: Invoke-RestMethod -Uri 'https://ApiServer/API/Alerts?Id=2d35ff56-687f-48d0-b03c-0b9cb5354a37&ResolutionState=255' -UseDefaultCredentials -Method Put
      will update the alert (in this case close it)

      1. Hung Le
        Reply

        Hi Martin,
        when i run follow command with powershell:

        Invoke-RestMethod -Uri ‘http://localhost:8888/API/Alerts?Id=128d68a5-fcf5-4358-bced-a43dc5e3a124&ResolutionState=255’ -UseDefaultCredentials -Method Put
        i got follow error:
        Invoke-RestMethod :
        IIS 8.5 Detailed Error – 405.0 – Method Not Allowed
        HTTP Error 405.0 – Method Not Allowed
        The page you are looking for cannot be displayed because an invalid method (HTTP verb) is being used.

        1. Hung Le
          Reply

          Something wrong with IIS on Windows 2012 R2?

          1. Martin Ehrnst

            Strange. I don’t manage to replicate this my self. Scom 2012 and server 2012?

          2. Martin Ehrnst

            Do you have webDav enabled?
            https://forums.asp.net/t/1949993.aspx?PUT+and+DELETE+methods+not+working+on+IIS

          3. Hung Le

            SCOM 2016 and Windows 2012 R2

  • Hung Le
    Reply

    Thank you for bringing SCOM in to the 21st century

    1. Martin Ehrnst
      Reply

      Of course 😉 if you are attending Experts Live in Berlin next week, I will have a short demo of it as well.

  • Tommy Vadman
    Reply

    Useful and fun stuff 🙂 Great job!

    1. Martin Ehrnst
      Reply

      Thank you Tommy. Let me know if you experience any issues. Glad you find it useful.
